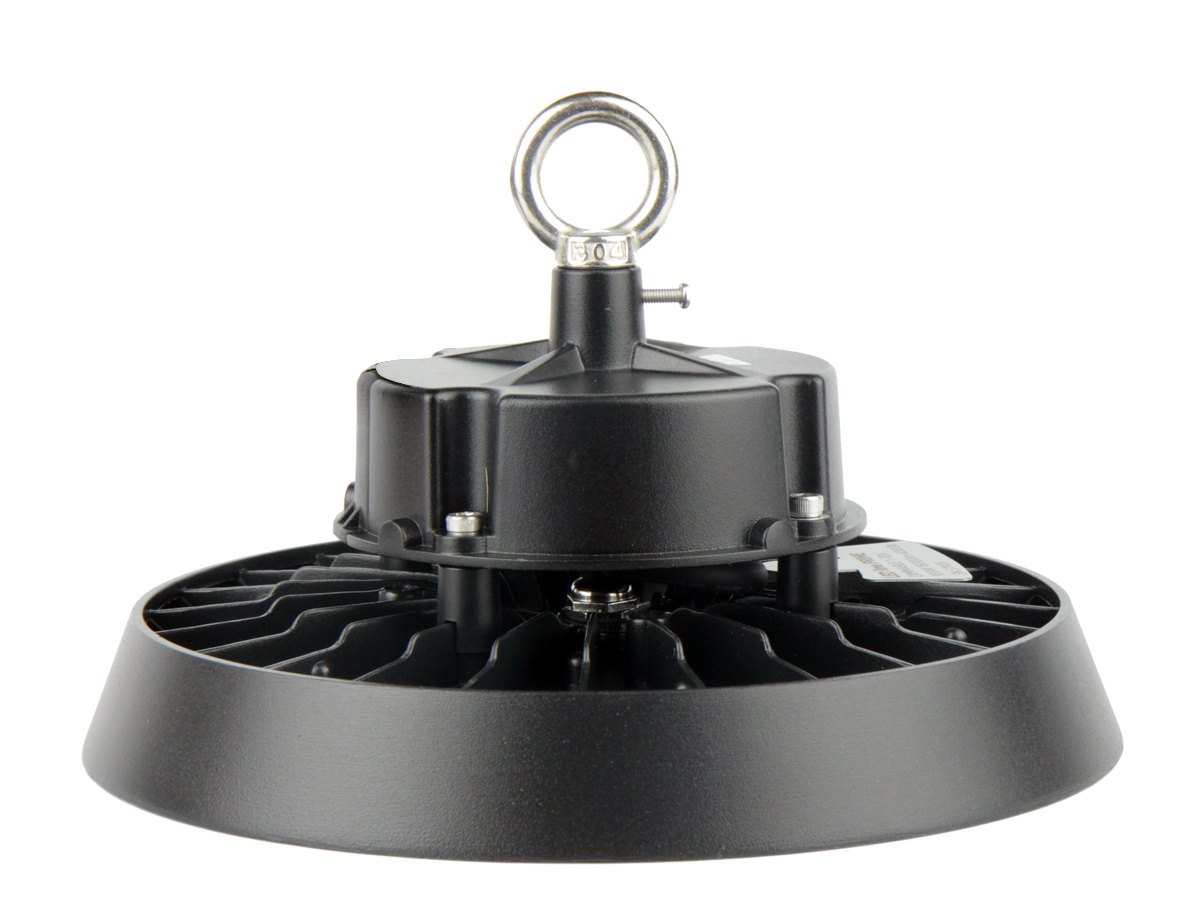

LED line® PRIME PHANTOM high bay floodlight 100W 18000lm 4000K SMD IP65

Description


Quality paired with performance The Phantom range of luminaires features Sosen power supplies with dimming function in the 1-10 V range as standard. It also works with a wide range of sensors (MC054 series) from the Merrytek brand, thanks to which you can achieve real energy savings of up to 45% of the luminaire's operating costs. This solution leads to an automatic adjustment of the required lighting level inside according to the daylight;The luminaire operates efficiently in the temperature range from -30 to +45 °C. With IK08 mechanical damage resistance, the product is resistant to impacts of 5 J.  Durable and reliable in all conditions  The Phantom LED line PRIME luminaires have been developed for places where the reliability of the product used is of crucial importance. They therefore prove their worth wherever the adverse effects of external factors require the use of appropriate solutions and where replacing luminaires would be costly The aluminium housing of the luminaire has been designed to maximize the heat dissipation of the luminaire while keeping the weight of the product low.  The Phantom LED line PRIME luminaires are recommended for lighting sports and industrial facilities, warehouses and places where the product is exposed to increased damage from factors such as dust, moisture or conductive dust due to their resistance. In tests for dust and water resistance, the luminaires achieved a result in resistance class IP65. This means that they function without any problems even under difficult environmental conditions, both indoors and outdoors;Each luminaire is supplied with a metal bracket that allows you to hang the luminaire in the right place. The product comes with a 5-year guarantee.

Technical data


Beam angle 60°
Color rendering index 70
Country of manufacture Poland
Dimmable Yes
Diode type SMD
EEK spectrum A-G
Energy efficiency class B
IK protection class IK08
IP protection class IP65
Light color Neutral white
Lighting technology LED
Material (cover) Polycarbonat
Material (housing) Aluminium
Motion sensor Nein
Operating temperature -30/+45
Power 100 Watts
Series PHANTOM
Switching cycles 50000
Voltage 100-277 Volt
Color Temperature 4000 Kelvin
Luminous flux 18000 lumen
